Building Tools in Unreal Engine 5
Welcome to the dedicated hub for tool creation in Unreal Engine 5. To make the learning path as clear—and actionable—as possible, this section is divided into three progressive parts, each building on the lessons of the previous one.
Part 1 — Blueprints
We start with UE5’s powerful visual‑scripting system. You’ll learn how to prototype ideas rapidly, expose parameters for designers, and iterate without recompiling. Expect hands‑on demos that get results on‑screen fast.
Video Tutorials
How to Use the BugIt Command in Unreal Engine
Tool: Generate Lightmap UVs
Tool: Cast Shadows
Tool: Empty Actors
Tool: Duplicated Actors
Part 2 — Python
With the workflow proven in Blueprints, we’ll graduate to Python scripting. Here we automate repetitive tasks, build pipeline helpers, and interface with external tools. Python lets us glue systems together and speed up daily production chores.

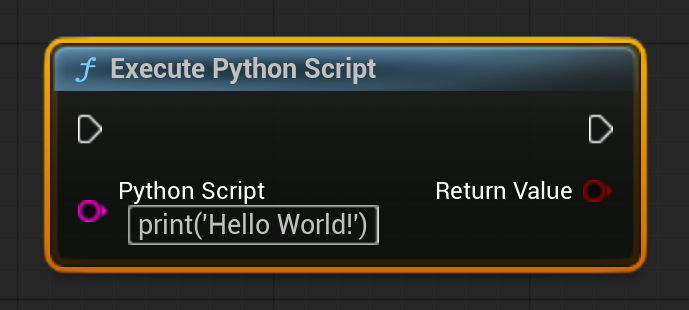

To trigger a Python script directly from an Editor Utility Widget, simply use the Execute Python Script node.
Tool: Organize Actors into Folders
Code:
import unreal
# Create instances for editor utilities
editor_level_lib = unreal.EditorLevelLibrary()
editor_filter_lib = unreal.EditorFilterLibrary()
# Get all actors in the current level
all_actors = editor_level_lib.get_all_level_actors()
# Helper to filter actors by class
def filter_by_class(actors, cls):
return editor_filter_lib.by_class(actors, cls)
# Filter actors by type
mapping = {
"StaticMeshActors": filter_by_class(all_actors, unreal.StaticMeshActor),
"SkeletalMeshActors": filter_by_class(all_actors, unreal.SkeletalMeshActor),
"Brush": filter_by_class(all_actors, unreal.Brush),
"BlockingVolume": filter_by_class(all_actors, unreal.BlockingVolume),
"DecalActor": filter_by_class(all_actors, unreal.DecalActor),
"Landscape": filter_by_class(all_actors, unreal.Landscape),
"NavModifierVolume": filter_by_class(all_actors, unreal.NavModifierVolume),
"ReflectionCapture": filter_by_class(all_actors, unreal.ReflectionCapture),
"Blueprints": editor_filter_lib.by_id_name(all_actors, "BP_"),
"Lights": filter_by_class(all_actors, unreal.Light),
}
moved_count = 0
# Move actors into their corresponding folders if not already in a folder
for folder_name, actors in mapping.items():
unreal.log(f"{folder_name}: {len(actors)} actors")
for actor in actors:
if actor.get_folder_path() != '':
continue # skip if actor already has a folder
actor.set_folder_path(folder_name)
unreal.log(f"Actors moved {actor.get_fname()} to {folder_name}")
moved_count += 1
# Move all actors without folders into 'Others'
others = [actor for actor in all_actors if actor.get_folder_path() == '']
if others:
unreal.log(f"Others: {len(others)} actors")
for actor in others:
actor.set_folder_path("Others")
unreal.log(f"Moved {actor.get_fname()} to Others")
moved_count += 1
unreal.log(f"Moved {moved_count} actors into folders (including 'Others')")
Tool: Spawn Skeletal Meshes by LOD
Code:
import unreal
# Helper: Get the number of LODs for a Skeletal Mesh
def get_lod_count(skel_mesh: unreal.SkeletalMesh) -> int:
return len(skel_mesh.get_editor_property("lod_info"))
# Get the bounding box size (AABB) of a Skeletal Mesh
def get_mesh_size(skel_mesh: unreal.SkeletalMesh) -> unreal.Vector:
bounds = skel_mesh.get_bounds()
return bounds.box_extent * 2
# Place Skeletal Meshes with all LODs in a grid
def place_skeletal_meshes_along_axis(
start_location=(0, 0, 0),
selected_assets=None,
x_spacing=100.0,
y_spacing=500.0
):
if selected_assets is None:
selected_assets = unreal.EditorUtilityLibrary.get_selected_assets()
location = unreal.Vector(*start_location)
first_mesh = True
for asset in selected_assets:
if not isinstance(asset, unreal.SkeletalMesh):
continue
mesh_size = get_mesh_size(asset)
lod_count = get_lod_count(asset)
# Reset X position for each new asset (new row)
location.x = start_location[0]
for lod in range(lod_count):
# Spawn the very first LOD of the first mesh at (0, 0, 0) for reference
if first_mesh:
location = unreal.Vector(0, 0, 0)
first_mesh = False
# ---- Spawn Skeletal Mesh Actor ----
actor = unreal.EditorLevelLibrary.spawn_actor_from_class(
unreal.SkeletalMeshActor, location
)
sk_comp = actor.get_component_by_class(
unreal.SkeletalMeshComponent.static_class()
)
# Assign the mesh and force specific LOD
if sk_comp:
sk_comp.set_editor_property("skeletal_mesh", asset)
if hasattr(sk_comp, "set_forced_lod_model"): # UE 5.3+
sk_comp.set_forced_lod_model(lod + 1) # 0=auto, 1=LOD0, etc.
else:
sk_comp.set_editor_property("forced_lod_model", lod + 1)
# Move right for the next LOD
location.x += mesh_size.x / 2 + x_spacing
# Move down after all LODs of the current mesh
location.y += y_spacing
# inputs
place_skeletal_meshes_along_axis(
start_location=(0, 0, 0),
selected_assets=unreal.EditorUtilityLibrary.get_selected_assets(),
x_spacing=200.0,
y_spacing=1000.0
)
Tool: Spawn Static Meshes Sorted by Size
Code:
import unreal
# -------------------------------------------------------------
# Helper: Returns the bounding box size of a static mesh
# -------------------------------------------------------------
def get_mesh_size(mesh):
bounding_box = mesh.get_bounding_box()
return bounding_box.max - bounding_box.min
# Helper: Returns the number of LODs for a static mesh
def get_lod_count(mesh):
return mesh.get_num_lods()
# Main: Places selected meshes in order from smallest to largest,
# spawns all their LODs in a row along the X-axis
def place_meshes_along_axis(start_location, selected_assets, spacing):
previous_mesh_size = unreal.Vector(0, 0, 0)
location = unreal.Vector(*start_location)
is_first_mesh = True
# Sort selected assets by volume (X * Y * Z size)
sorted_assets = sorted(
selected_assets,
key=lambda asset: get_mesh_size(asset).x * get_mesh_size(asset).y * get_mesh_size(asset).z
)
for asset in sorted_assets:
if not isinstance(asset, unreal.StaticMesh):
continue
mesh_size = get_mesh_size(asset)
lod_count = get_lod_count(asset)
for lod in range(lod_count):
if is_first_mesh:
# Place the first mesh at the starting position
is_first_mesh = False
else:
# Move to the next position considering size and spacing
location.x += previous_mesh_size.x / 2 + mesh_size.x / 2 + spacing
# Spawn mesh actor in the level
actor = unreal.EditorLevelLibrary.spawn_actor_from_object(asset, location)
# Force this actor to use a specific LOD
sm_component = actor.get_component_by_class(unreal.StaticMeshComponent.static_class())
if sm_component:
sm_component.set_forced_lod_model(lod)
# Offset for the next LOD instance
location.x += mesh_size.x / 2 + spacing
previous_mesh_size = mesh_size
# --- Inputs ---
input_x = 0 # X start position
input_y = 0 # Y start position
input_z = 0 # Z start position
spacing = 50 # Space between meshes
# Get selected assets from the Content Browser
selected_assets = unreal.EditorUtilityLibrary.get_selected_assets()
# Run the main function with provided inputs
place_meshes_along_axis([input_x, input_y, input_z], selected_assets, spacing)
Part 3 — C++
Finally, we translate our prototypes into performant, production‑ready C++. This chapter focuses on writing clean modules, extending the editor, and squeezing every drop of performance out of custom tools.
Whether you’re a technical artist looking to iterate visually, a pipeline engineer automating processes, or a programmer chasing raw speed, you’ll find something valuable in each chapter. Dive in, follow along, and let’s build better tools together!
